On chain state transition remix

Remix

  1. Connect yout Metamask wallet to Polygon Mumbai Testnet.

  2. On the Remix Homepage, click "Load from GitHub" and import State.sol using the link: https://github.com/iden3/contracts/blob/master/contracts/State.sol

  3. Move to the "Solidity Compiler" section and compile State.sol.

  4. Move to the "Deploy and Run Transaction" section and modify the Environment to "Injected web3". If everything was set correctly, you should see Custom (80001) network below the environment drop-down menu.The system prompts you to connect to your MetaMask wallet. Make sure to select the "Mumbai" network on your Metamask before connecting the wallet.

  5. Make sure that the State contract is selected in the contract drop-down menu and "Load contract from address" adding 0x46Fd04eEa588a3EA7e9F055dd691C688c4148ab3 as contract address.

  6. Check identity state at T=0. To check the identity state call the getState function on the State.sol passing in your identifier. The identifier is the first public input in the public array returned from the solidity calldata from the previous tutorial. The result is zero as there's no identity state associated with that identifier because the identity state has never been published on-chain (yet!)

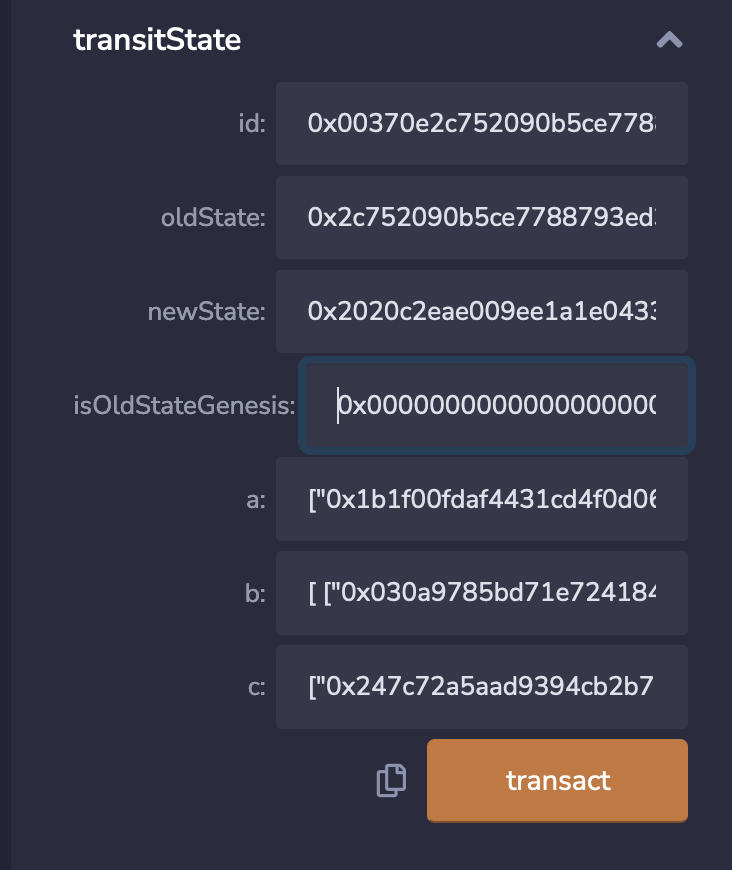

  7. Now update the identity state by calling the transitState function on State.sol.

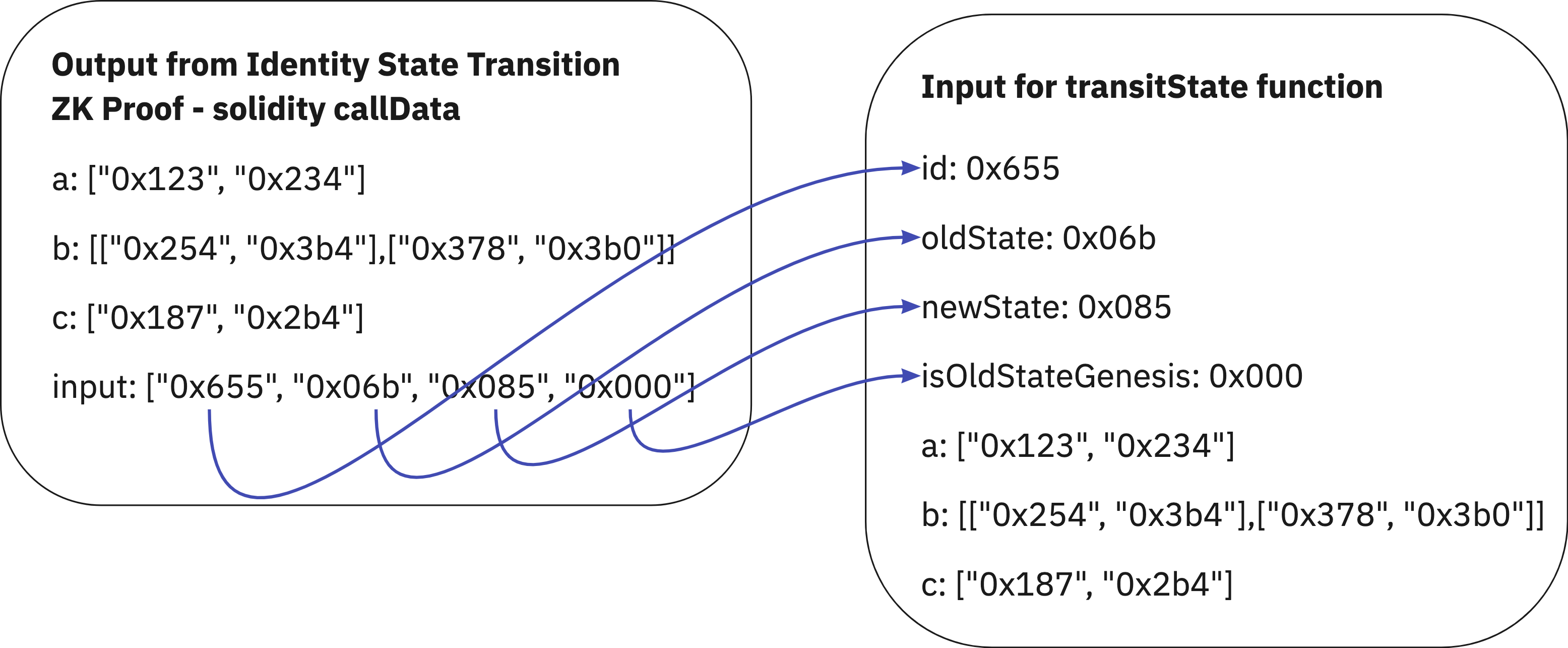

    The outputs generated from the previous tutorial are passed as inputs to the transitState function. See the one-to-one mapping between the outputs from state transition and the inputs to the transitState function in the diagram below:

    transitState Function Inputs

  8. Check the new state. To check, call the getState function again by passing the value of the identifier you used above as an input to the transitState function.

You can see that the console displays a new state:

uint256:14531895531750268543323474544059484523319511522635242711319115705040584883009
